Ceramics 3D printer
Contract manufacturing services
In addition to 3D printing, we offer services tailored to every 3D printing challenge, from design support to mass production support.
Please feel free to contact us
For more information..
NEWS
PROBLEM
Do you have any of these issues in ceramics 3D printing?
- You want to try 3D printing for shapes that cannot be manufactured using existing manufacturing methods (machining, casting, etc.).
- You want to leave everything from material selection, shape design, printing, sintering, and mass production to ceramics professionals.
- You want to make prototypes in ceramics 3D printing as the existing manufacturing methods require high initial costs (molds and jigs) and delivery times.
SOLUTION
Your problems can be solved by Mitsui Kinzoku’s advanced technology and expertise.

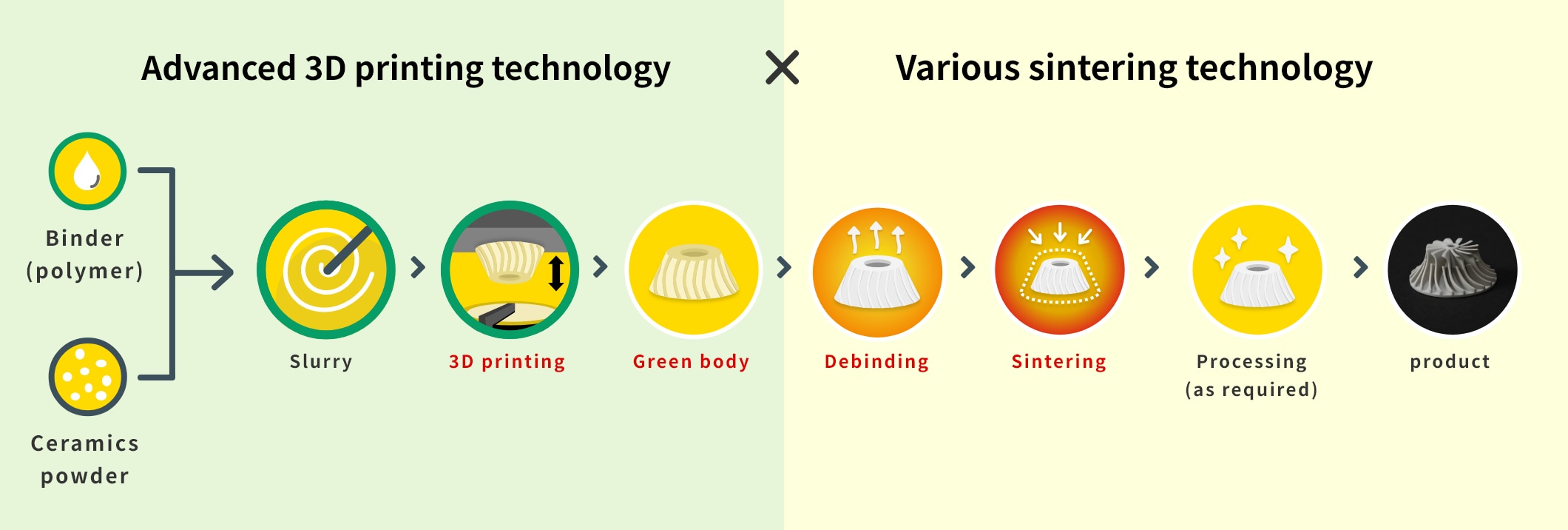

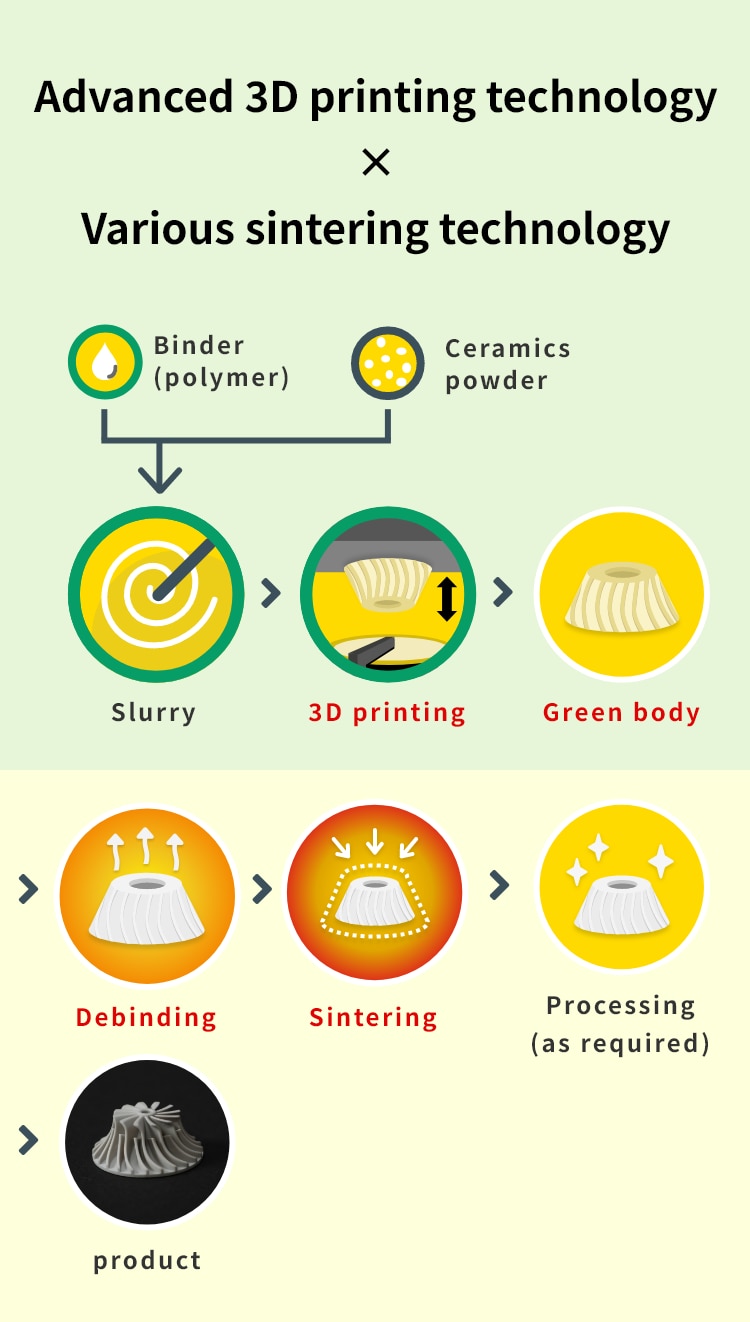

The latest Lithography-based Ceramic Manufacturing (LCM) technology and Mitsui Kinzoku's sintering technology provide high-precision and high-definition products.
- The latest Lithography-based Ceramic Manufacturing (LCM) technology enables high-precision and high-definition 3D printing .

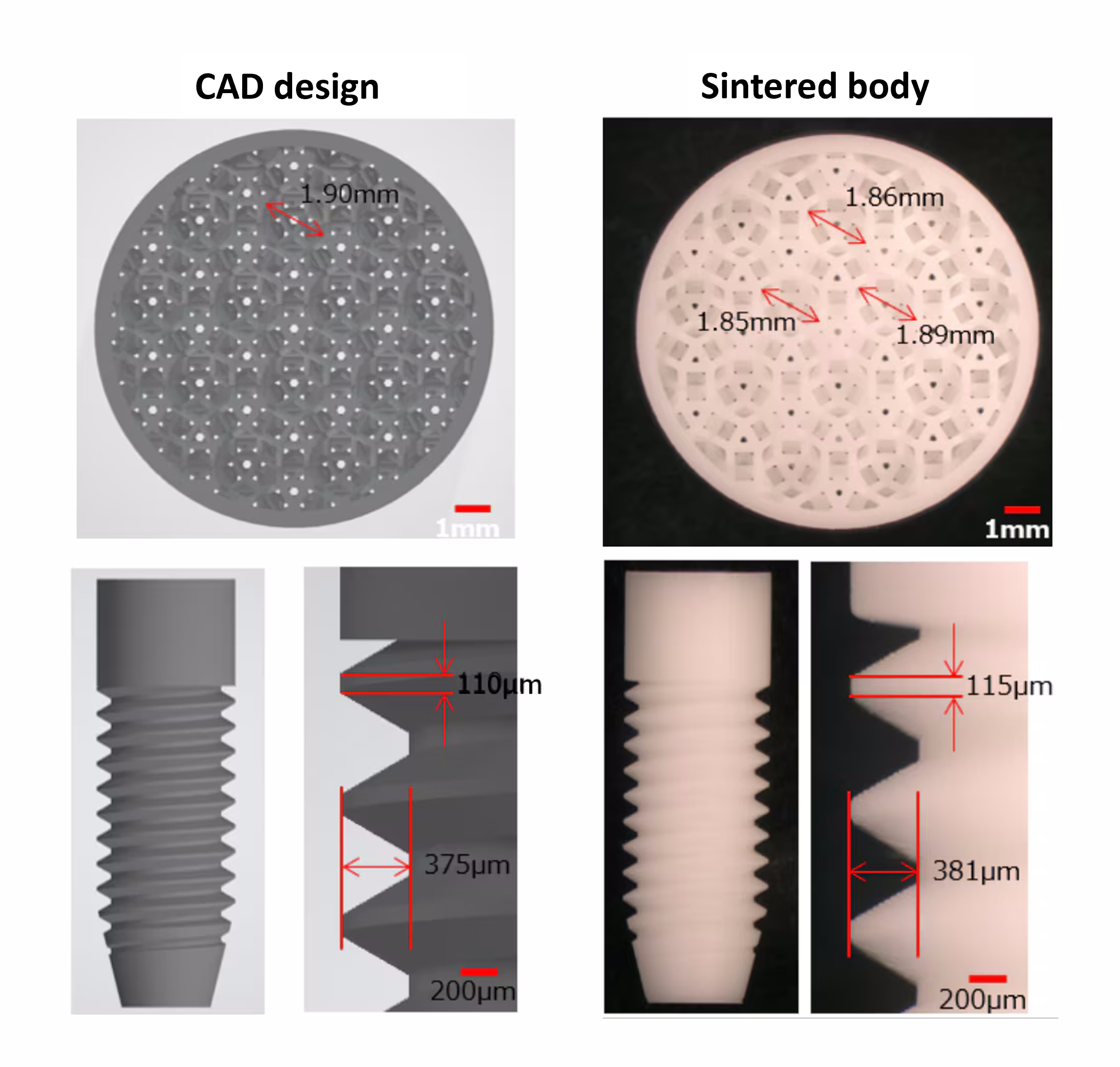

- We provide ceramic sintered bodies that accurately reproduce the CAD drawings provided by our customers.
- We can fabricate complex hole shapes and threaded shapes that require accuracy in just a few microns.
Raw material and printing technology specialized in ceramic 3D printing
- High-definition printing can be achieved by the specialized slurry made by mixing ceramic powder and resin for 3D ceramic..
- Multiple identical shapes or multiple different shapes can be printed in a single printing run simultaneously.
- Adjustment to the appropriate shape for printing and supports for printing can be consulted upon request.
Sintering technology based on years experience and performance-based prevents cracking and deformation when sintering.
- By taking advantage of our sintering technologies (kiln furniture, furnaces, sintering conditions..) that Mitsui Kinzoku has cultivated over the years, complex 3D products can be fabricated without any cracks or deformation.
- The most suitable kiln furniture, furnace, sintering conditions are selected according to shape and materials to solve sintering problems.

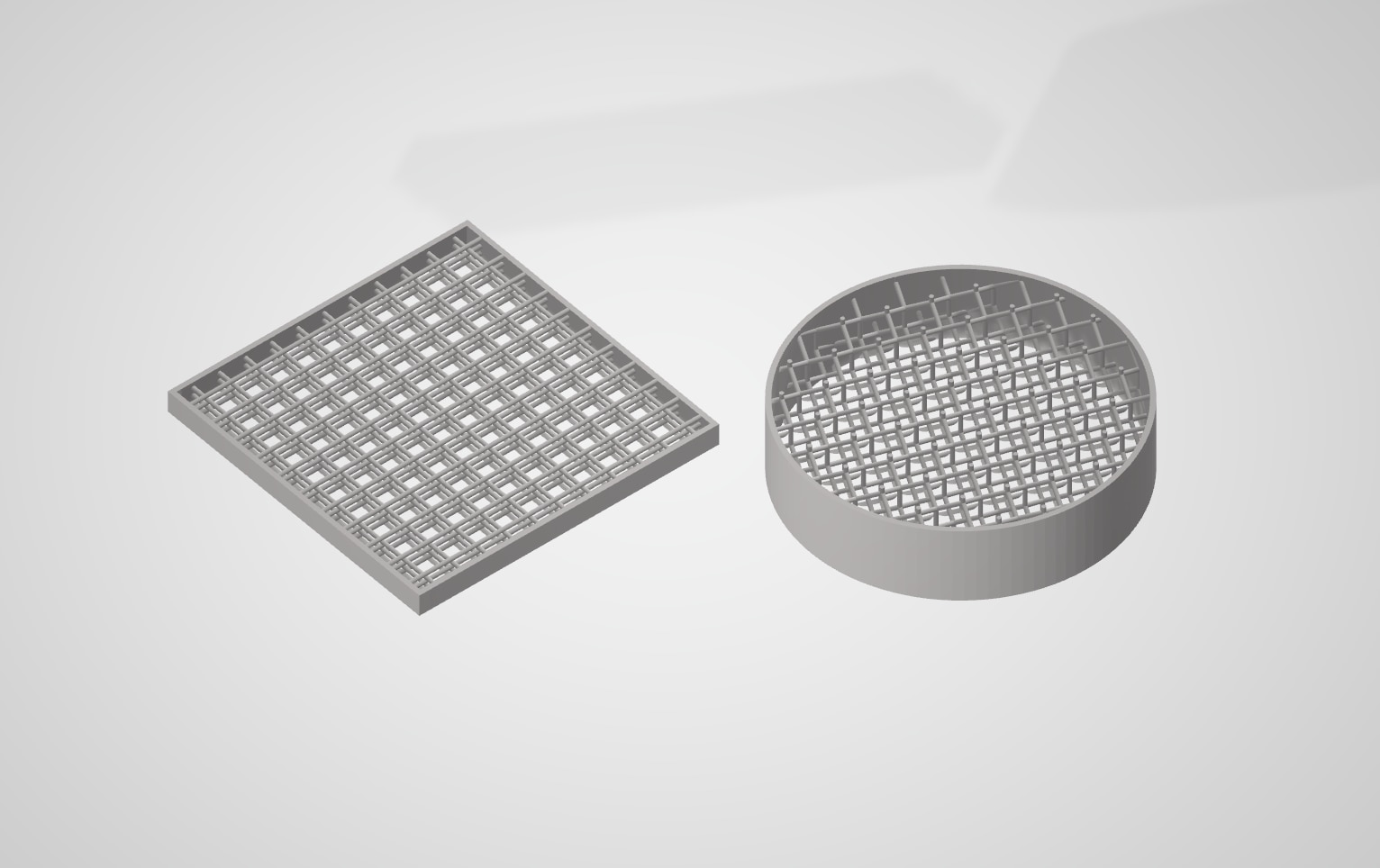

- The use of Mitsui Kinzoku’s unique mesh setter (Ceramesh®), for example, improves air permeability and heat uniformity, and prevent cracks and deformation during sintering process.
Mistui Kinzoku’s Strength
3D printing Video
CONTACT
For high-quality 3D printing, leave it to us!
Please feel free to contact us
For more information..
SERVICE
Key Feature of Ceramics 3D Contract Manufacturing Service
We provide a wide range of services, from general services incidental to 3D printing, such as design/design optimization, simple printinge tests, material selection, debinding, support for sintering, and additional processing (finishing), to early quotation response, short delivery times, and mass production support.
Examples of Ceramics 3D Parts
A wide range of materials is available for manufacturing from small to large sizes.
FLOW
Service Flow
Contact Us
・Contact us through the
form
・Contact you from our
sales representative
・Web meeting if needed
form
・Contact you from our
sales representative
・Web meeting if needed
Design
・Model design suitable
for 3D
・Propose materials and
shapes to meet your
application
for 3D
・Propose materials and
shapes to meet your
application
Verification and Quotation
・Proposal of shape change
・Submit quotation
・Submit quotation
3D printing
・Start printing after receipt
of purchase order
of purchase order
Debinding and
Sintering
・Manufacturing with
debinding and sintering
technique suitable for 3D
(Kiln furniture, Furnace,
Sintering Conditions)
debinding and sintering
technique suitable for 3D
(Kiln furniture, Furnace,
Sintering Conditions)
Finishing work
・Finish processing upon
request
・Post processing
(polishing, etc.)
・Post treatment
(surface treatment, etc.)
request
・Post processing
(polishing, etc.)
・Post treatment
(surface treatment, etc.)
Inspection and Quality Control
・Shape measurement and
quality control
・Material analysis
・Various types of support
・Contact us for more
details
quality control
・Material analysis
・Various types of support
・Contact us for more
details
Mass production support
・Supports small to large
volume production
・Contact us for more
details
volume production
・Contact us for more
details
MATERIAL
Materials Line-up
- Various materials Line-up specialized in ceramics 3D printing.
- Materials other than the listed below can also be discussed.
Alumina
（Al₂O₃）
Alumina High Precision
（Al₂O₃）
Alumina High Purity
（Al₂O₃）
【Features】
Heat resistance, abrasion resistance, insulation, and chemical resistance. Three types of aluminum are available depending upon your application.
Heat resistance, abrasion resistance, insulation, and chemical resistance. Three types of aluminum are available depending upon your application.
Zirconia
（ZrO₂）
【Features】
High strength, fracture toughness, low thermal conductivity, chemical resistance
High strength, fracture toughness, low thermal conductivity, chemical resistance
Silica
（SiO₂）
【Features】
Low thermal expansion, insulating properties, solubility in alkaline solutions
Low thermal expansion, insulating properties, solubility in alkaline solutions
Silicon Nitride
（Si₃N₄）
【Features】
Thermal shock resistance, high strength, low thermal expansion, insulation
Thermal shock resistance, high strength, low thermal expansion, insulation
Aluminum Nitride
（AlN）
【Features】
High thermal conductivity, thermal shock resistance, insulation
High thermal conductivity, thermal shock resistance, insulation
Yttria
（Y₂O₃）
【Features】
Insulation and chemical resistance
Insulation and chemical resistance
Alumina Toughened
Zirconia(ATZ)
【Features】
High strength, fracture toughness, low thermal conductivity, chemical resistance
High strength, fracture toughness, low thermal conductivity, chemical resistance
CASE
Case Studies
【Industry】 Aerospace
【Application】 Casting cores for casting (original mold)
【Material】 Silica-based material
Used for casting cores (molds) for turbine blades and other castings. The complex, high-precision shape contributes to efficiency by providing cooling functions for turbine blades and other products.
【Keywords】Aerospace, ceramic cores, casting cores, turbine blades
【Industry】 Automobile, Semiconductor
【Application】 Heat dissipation substrate
【Material】 Aluminum nitride
High thermal conductivity, excellent electrical insulation, and a complex 3D structure enable highly efficient heat dissipation characteristics.
【Keywords】High thermal conductivity, semiconductor, automotive, thermal application, thermal management
【Industry] Medical
【Application】 Needle for medical devices
【Material]】Alumina
Needles used in medical devices. Compared to conventional metal needles, these needles have superior resistance to abrasion and chemicals such as sodium hypochlorite, contributing to longer product life (number of uses) and reduced needle consumables.
【Keyword】Medical, needle, abrasion resistance, chemical resistance
